Product Code	Image	Data Sheet	Attributes

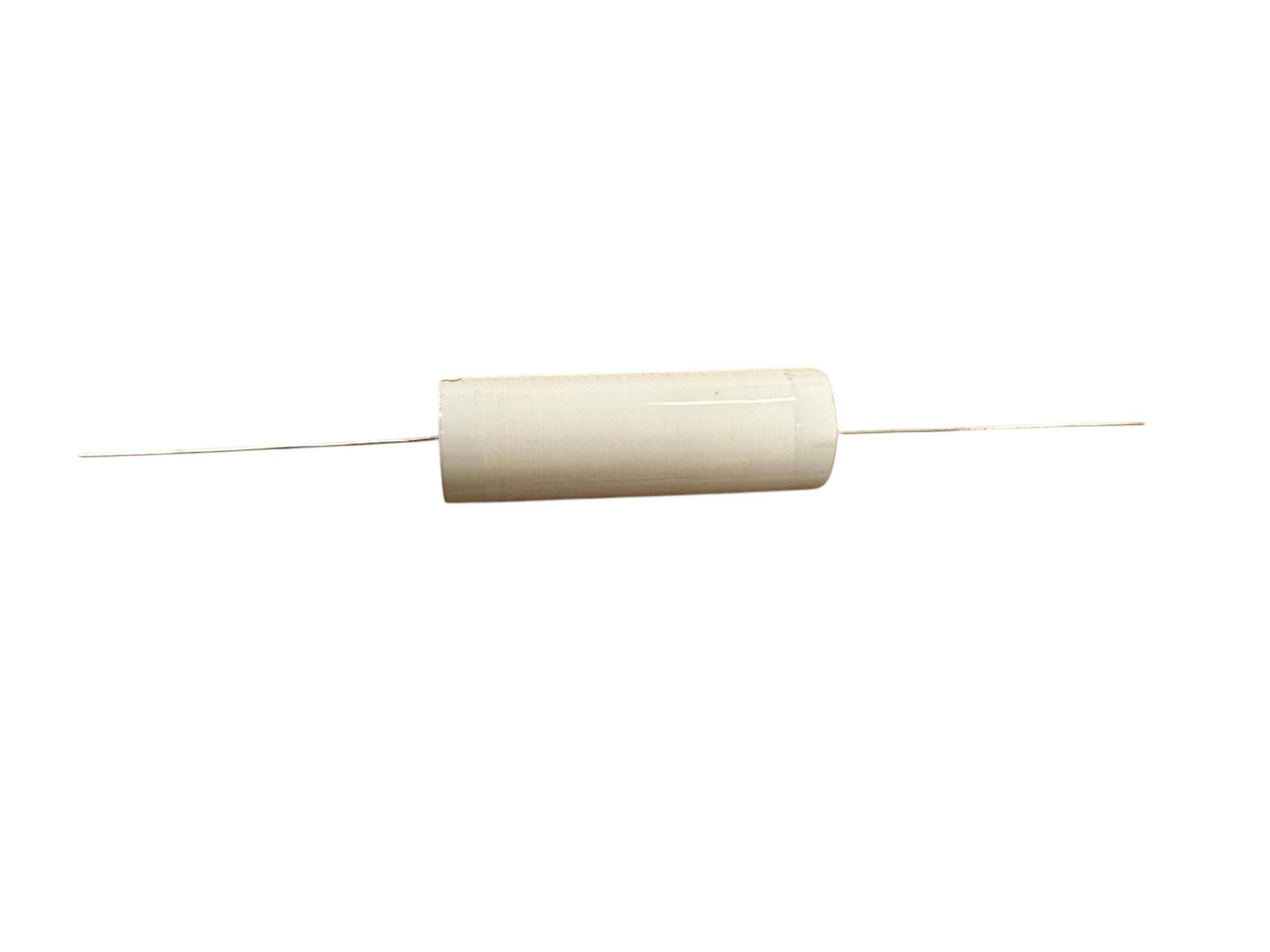

X363 3.3 5 400		Data Sheet: X363	Application: Power Supply, Pulse Current Capacitance (uF): 3.3 Cap f primary: 3.3 Case: Tape Wrap and Epoxy Fill Construction: non-inductive wound metallized polypropylene film Dielectric Material: Polypropylene - Metallized Dimension inches: 1.844" H x 1.047" D Dimension mm: 46.8mm x 26.6mm IPeak: 19.5 Lifecycle @ Rated Temp & Voltage: 30,000 hrs Operating Temperature: '-55 °C to +105 °C Termination: Solid Wire Tolerance: ±5% Voltage Rating - DC: 400V

Product Code	Image	Data Sheet	Attributes
X363 3.3 5 400		Data Sheet: X363	Application: Power Supply, Pulse Current Capacitance (uF): 3.3 Cap f primary: 3.3 Case: Tape Wrap and Epoxy Fill Construction: non-inductive wound metallized polypropylene film Dielectric Material: Polypropylene - Metallized Dimension inches: 1.844" H x 1.047" D Dimension mm: 46.8mm x 26.6mm IPeak: 19.5 Lifecycle @ Rated Temp & Voltage: 30,000 hrs Operating Temperature: '-55 °C to +105 °C Termination: Solid Wire Tolerance: ±5% Voltage Rating - DC: 400V

Showing the single result

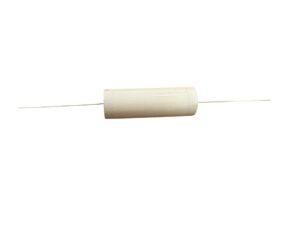

X363 3.3 5 400
