Product Code	Data Sheet	Attributes
X333F 0.68 5 240	Data Sheet: X333F	Application: Power Supply, Pulse Current Capacitance (µF): 0.68 Case: Tape Wrap and Epoxy Fill Dielectric Material: Polypropylene - Metallized ESR: 10 mOhms ESR kHz: 100kHz Operating Temperature: -55 °C to +90 °C Termination: Solid Wire Tolerance: ±5% Voltage Rating - DC: 600V Voltage Rating - AC: 240V Dimension inches: 0.550" T x 1.313" H x 0.850" L Dimension mm: 14.0mm x 33.4mm x 21.6mm IPeak: 10 Irms (Arms): check data sheet Construction: non-inductive wound metallized polypropylene film Lifecycle @ Rated Temp & Voltage: 30,000 hrs
X333F 1 5 240	Data Sheet: X333F	Application: Power Supply, Pulse Current Capacitance (µF): 1 Case: Tape Wrap and Epoxy Fill Dielectric Material: Polypropylene - Metallized ESR: 8 mOhms ESR kHz: 100kHz Operating Temperature: -55 °C to +90 °C Termination: Solid Wire Tolerance: ±5% Voltage Rating - DC: 600V Voltage Rating - AC: 240V Dimension inches: 0.670" T x 1.313" H x 0.970" L Dimension mm: 17.0mm x 33.4mm x 24.6mm IPeak: 14.6 Irms (Arms): check data sheet Construction: non-inductive wound metallized polypropylene film Lifecycle @ Rated Temp & Voltage: 30,000 hrs
X333F 1.5 5 240	Data Sheet: X333F	Application: Power Supply, Pulse Current Capacitance (µF): 1.5 Case: Tape Wrap and Epoxy Fill Dielectric Material: Polypropylene - Metallized ESR: 7 mOhms ESR kHz: 100kHz Operating Temperature: -55 °C to +90 °C Termination: Solid Wire Tolerance: ±5% Voltage Rating - DC: 600V Voltage Rating - AC: 240V Dimension inches: 0.780" T x 1.313" H x 1.080" L Dimension mm: 19.8mm x 33.4mm x 27.4mm IPeak: 17 Irms (Arms): check data sheet Construction: non-inductive wound metallized polypropylene film Lifecycle @ Rated Temp & Voltage: 30,000 hrs
X333F 10 5 240	Data Sheet: X333F	Application: Power Supply, Pulse Current Capacitance (µF): 10 Case: Tape Wrap and Epoxy Fill Dielectric Material: Polypropylene - Metallized ESR: 7 mOhms ESR kHz: 100kHz Operating Temperature: -55 °C to +90 °C Termination: Solid Wire Tolerance: ±5% Voltage Rating - DC: 600V Voltage Rating - AC: 240V Dimension inches: 1.460" T x 2.313" H x 1.880" L Dimension mm: 37.1mm x 58.8mm x 47.8mm IPeak: 65 Irms (Arms): check data sheet Construction: non-inductive wound metallized polypropylene film Lifecycle @ Rated Temp & Voltage: 30,000 hrs
X333F 15 5 240	Data Sheet: X333F	Application: Power Supply, Pulse Current Capacitance (µF): 15 Case: Tape Wrap and Epoxy Fill Dielectric Material: Polypropylene - Metallized ESR: 6 mOhms ESR kHz: 100kHz Operating Temperature: -55 °C to +90 °C Termination: Solid Wire Tolerance: ±5% Voltage Rating - DC: 600V Voltage Rating - AC: 240V Dimension inches: 1.750" T x 2.313" H x 2.250" L Dimension mm: 44.5mm x 58.8mm x 57.2mm IPeak: 95 Irms (Arms): check data sheet Construction: non-inductive wound metallized polypropylene film Lifecycle @ Rated Temp & Voltage: 30,000 hrs
X333F 2.2 5 240	Data Sheet: X333F	Application: Power Supply, Pulse Current Capacitance (µF): 2.2 Case: Tape Wrap and Epoxy Fill Dielectric Material: Polypropylene - Metallized ESR: 10 mOhms ESR kHz: 100kHz Operating Temperature: -55 °C to +90 °C Termination: Solid Wire Tolerance: ±5% Voltage Rating - DC: 600V Voltage Rating - AC: 240V Dimension inches: 0.640" T x 2.313" H x 0.940" L Dimension mm: 16.3mm x 58.8mm x 23.9mm IPeak: 18.4 Irms (Arms): check data sheet Construction: non-inductive wound metallized polypropylene film Lifecycle @ Rated Temp & Voltage: 30,000 hrs
X333F 20 5 240	Data Sheet: X333F	Application: Power Supply, Pulse Current Capacitance (µF): 20 Case: Tape Wrap and Epoxy Fill Dielectric Material: Polypropylene - Metallized ESR: 5 mOhms ESR kHz: 100kHz Operating Temperature: -55 °C to +90 °C Termination: Solid Wire Tolerance: ±5% Voltage Rating - DC: 600V Voltage Rating - AC: 240V Dimension inches: 2.100" T x 2.313" H x 2.550" L Dimension mm: 53.3mm x 58.8mm x 64.8mm IPeak: 128 Irms (Arms): check data sheet Construction: non-inductive wound metallized polypropylene film Lifecycle @ Rated Temp & Voltage: 30,000 hrs
X333F 3.3 5 240	Data Sheet: X333F	Application: Power Supply, Pulse Current Capacitance (µF): 3.3 Case: Tape Wrap and Epoxy Fill Dielectric Material: Polypropylene - Metallized ESR: 10 mOhms ESR kHz: 100kHz Operating Temperature: -55 °C to +90 °C Termination: Solid Wire Tolerance: ±5% Voltage Rating - DC: 600V Voltage Rating - AC: 240V Dimension inches: 0.830" T x 2.313" H x 1.150" L Dimension mm: 21.1mm x 58.8mm x 29.2mm IPeak: 22 Irms (Arms): check data sheet Construction: non-inductive wound metallized polypropylene film Lifecycle @ Rated Temp & Voltage: 30,000 hrs
X333F 4.7 5 240	Data Sheet: X333F	Application: Power Supply, Pulse Current Capacitance (µF): 4.7 Case: Tape Wrap and Epoxy Fill Dielectric Material: Polypropylene - Metallized ESR: 9 mOhms ESR kHz: 100kHz Operating Temperature: -55 °C to +90 °C Termination: Solid Wire Tolerance: ±5% Voltage Rating - DC: 600V Voltage Rating - AC: 240V Dimension inches: 0.990" T x 2.313" H x 1.330" L Dimension mm: 25.1mm x 58.8mm x 33.8mm IPeak: 31 Irms (Arms): check data sheet Construction: non-inductive wound metallized polypropylene film Lifecycle @ Rated Temp & Voltage: 30,000 hrs
X333F 6.8 5 240	Data Sheet: X333F	Application: Power Supply, Pulse Current Capacitance (µF): 6.8 Case: Tape Wrap and Epoxy Fill Dielectric Material: Polypropylene - Metallized ESR: 9 mOhms ESR kHz: 100kHz Operating Temperature: -55 °C to +90 °C Termination: Solid Wire Tolerance: ±5% Voltage Rating - DC: 600V Voltage Rating - AC: 240V Dimension inches: 1.240" T x 2.313" H x 1.560" L Dimension mm: 31.5mm x 58.8mm x 39.6mm IPeak: 44 Irms (Arms): check data sheet Construction: non-inductive wound metallized polypropylene film Lifecycle @ Rated Temp & Voltage: 30,000 hrs
X333F 8.2 5 240	Data Sheet: X333F	Application: Power Supply, Pulse Current Capacitance (µF): 8.2 Case: Tape Wrap and Epoxy Fill Dielectric Material: Polypropylene - Metallized ESR: 8 mOhms ESR kHz: 100kHz Operating Temperature: -55 °C to +90 °C Termination: Solid Wire Tolerance: ±5% Voltage Rating - DC: 600V Voltage Rating - AC: 240V Dimension inches: 1.290" T x 2.313" H x 1.730" L Dimension mm: 32.8mm x 58.8mm x 43.9mm IPeak: 53 Irms (Arms): check data sheet Construction: non-inductive wound metallized polypropylene film Lifecycle @ Rated Temp & Voltage: 30,000 hrs

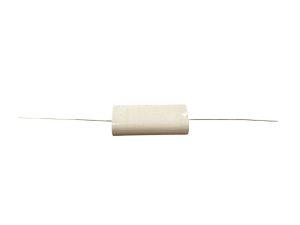

X663F 0.01 5 600	Data Sheet: X663F	Application: Power Supply, Pulse Current Capacitance (µF): 0.01 Case: Tape Wrap and Epoxy Fill Dielectric Material: Polyester – Metallized Operating Temperature: -55 °C to +85 °C Termination: Solid Wire Tolerance: ±5% Voltage Rating - DC: 600V Dimension inches: 0.219" T x 0.782" H x 0.343" L Dimension mm: 5.6mm x 19.9mm x 8.7mm IPeak: 0.4 Construction: non-inductive wound metallized polyester film Lifecycle @ Rated Temp & Voltage: 30,000 hrs
X663F 0.012 5 600	Data Sheet: X663F	Application: Power Supply, Pulse Current Capacitance (µF): 0.012 Case: Tape Wrap and Epoxy Fill Dielectric Material: Polyester – Metallized Operating Temperature: -55 °C to +85 °C Termination: Solid Wire Tolerance: ±5% Voltage Rating - DC: 600V Dimension inches: 0.235" T x 0.782" H x 0.375" L Dimension mm: 6.0mm x 19.9mm x 9.5mm IPeak: 0.4 Construction: non-inductive wound metallized polyester film Lifecycle @ Rated Temp & Voltage: 30,000 hrs
X663F 0.015 5 600	Data Sheet: X663F	Application: Power Supply, Pulse Current Capacitance (µF): 0.015 Case: Tape Wrap and Epoxy Fill Dielectric Material: Polyester – Metallized Operating Temperature: -55 °C to +85 °C Termination: Solid Wire Tolerance: ±5% Voltage Rating - DC: 600V Dimension inches: 0.250" T x 0.782" H x 0.390" L Dimension mm: 6.4mm x 19.9mm x 9.9mm IPeak: 0.5 Construction: non-inductive wound metallized polyester film Lifecycle @ Rated Temp & Voltage: 30,000 hrs
X663F 0.018 5 600	Data Sheet: X663F	Application: Power Supply, Pulse Current Capacitance (µF): 0.018 Case: Tape Wrap and Epoxy Fill Dielectric Material: Polyester – Metallized Operating Temperature: -55 °C to +85 °C Termination: Solid Wire Tolerance: ±5% Voltage Rating - DC: 600V Dimension inches: 0.281" T x 0.782" H x 0.453" L Dimension mm: 7.1mm x 19.9mm x 11.5mm IPeak: 0.6 Construction: non-inductive wound metallized polyester film Lifecycle @ Rated Temp & Voltage: 30,000 hrs
X663F 0.022 5 600	Data Sheet: X663F	Application: Power Supply, Pulse Current Capacitance (µF): 0.022 Case: Tape Wrap and Epoxy Fill Dielectric Material: Polyester – Metallized Operating Temperature: -55 °C to +85 °C Termination: Solid Wire Tolerance: ±5% Voltage Rating - DC: 600V Dimension inches: 0.297" T x 0.782" H x 0.500" L Dimension mm: 7.5mm x 19.9mm x 12.7mm IPeak: 0.8 Construction: non-inductive wound metallized polyester film Lifecycle @ Rated Temp & Voltage: 30,000 hrs
X663F 0.027 5 600	Data Sheet: X663F	Application: Power Supply, Pulse Current Capacitance (µF): 0.027 Case: Tape Wrap and Epoxy Fill Dielectric Material: Polyester – Metallized Operating Temperature: -55 °C to +85 °C Termination: Solid Wire Tolerance: ±5% Voltage Rating - DC: 600V Dimension inches: 0.312" T x 0.782" H x 0.515" L Dimension mm: 7.9mm x 19.9mm x 13.1mm IPeak: 1 Construction: non-inductive wound metallized polyester film Lifecycle @ Rated Temp & Voltage: 30,000 hrs
X663F 0.033 5 600	Data Sheet: X663F	Application: Power Supply, Pulse Current Capacitance (µF): 0.033 Case: Tape Wrap and Epoxy Fill Dielectric Material: Polyester – Metallized Operating Temperature: -55 °C to +85 °C Termination: Solid Wire Tolerance: ±5% Voltage Rating - DC: 600V Dimension inches: 0.343" T x 0.782" H x 0.547" L Dimension mm: 8.7mm x 19.9mm x 13.9mm IPeak: 1.2 Construction: non-inductive wound metallized polyester film Lifecycle @ Rated Temp & Voltage: 30,000 hrs
X663F 0.039 5 600	Data Sheet: X663F	Application: Power Supply, Pulse Current Capacitance (µF): 0.039 Case: Tape Wrap and Epoxy Fill Dielectric Material: Polyester – Metallized Operating Temperature: -55 °C to +85 °C Termination: Solid Wire Tolerance: ±5% Voltage Rating - DC: 600V Dimension inches: 0.250" T x 1.032" H x 0.453" L Dimension mm: 6.4mm x 26.2mm x 11.5mm IPeak: 0.8 Construction: non-inductive wound metallized polyester film Lifecycle @ Rated Temp & Voltage: 30,000 hrs
X663F 0.047 5 600	Data Sheet: X663F	Application: Power Supply, Pulse Current Capacitance (µF): 0.047 Case: Tape Wrap and Epoxy Fill Dielectric Material: Polyester – Metallized Operating Temperature: -55 °C to +85 °C Termination: Solid Wire Tolerance: ±5% Voltage Rating - DC: 600V Dimension inches: 0.281" T x 1.032" H x 0.484" L Dimension mm: 7.1mm x 26.2mm x 12.3mm IPeak: 1 Construction: non-inductive wound metallized polyester film Lifecycle @ Rated Temp & Voltage: 30,000 hrs
