HVSC 0.2 5 3750

Data Sheet: HSVC

Product Specifications

  • Application: Adjustable-Speed/Variable-Frequency Drives, GTO/IGCT Snubber, Industrial Inverter, Rail Grid Interties, Traction Inverter
  • Capacitance (µF): 0.2
  • Tolerance: ±5%
  • Voltage Rating - DC: 3750V
  • Operating Temperature: -40 °C to +85 °C
  • ESR: 3 mOhms
  • Vsurge: 7200
  • ISurge: 3.3
  • IPeak: 1.1
  • Irms (Arms): 25
  • Lifecycle @ Rated Temp & Voltage: 100,000 hrs
  • Construction: metallized polypropylene film
  • Dielectric Material: Polypropylene - Metallized
  • Case: Preformed Case with Epoxy Fill
  • Termination: Female (M8)
  • Mounting Type: Any position
  • Dimension inches: 6.220" H x 2.360" D
  • Dimension mm: 158.0mm x 60.0mm
Category: Tags: , , , ,

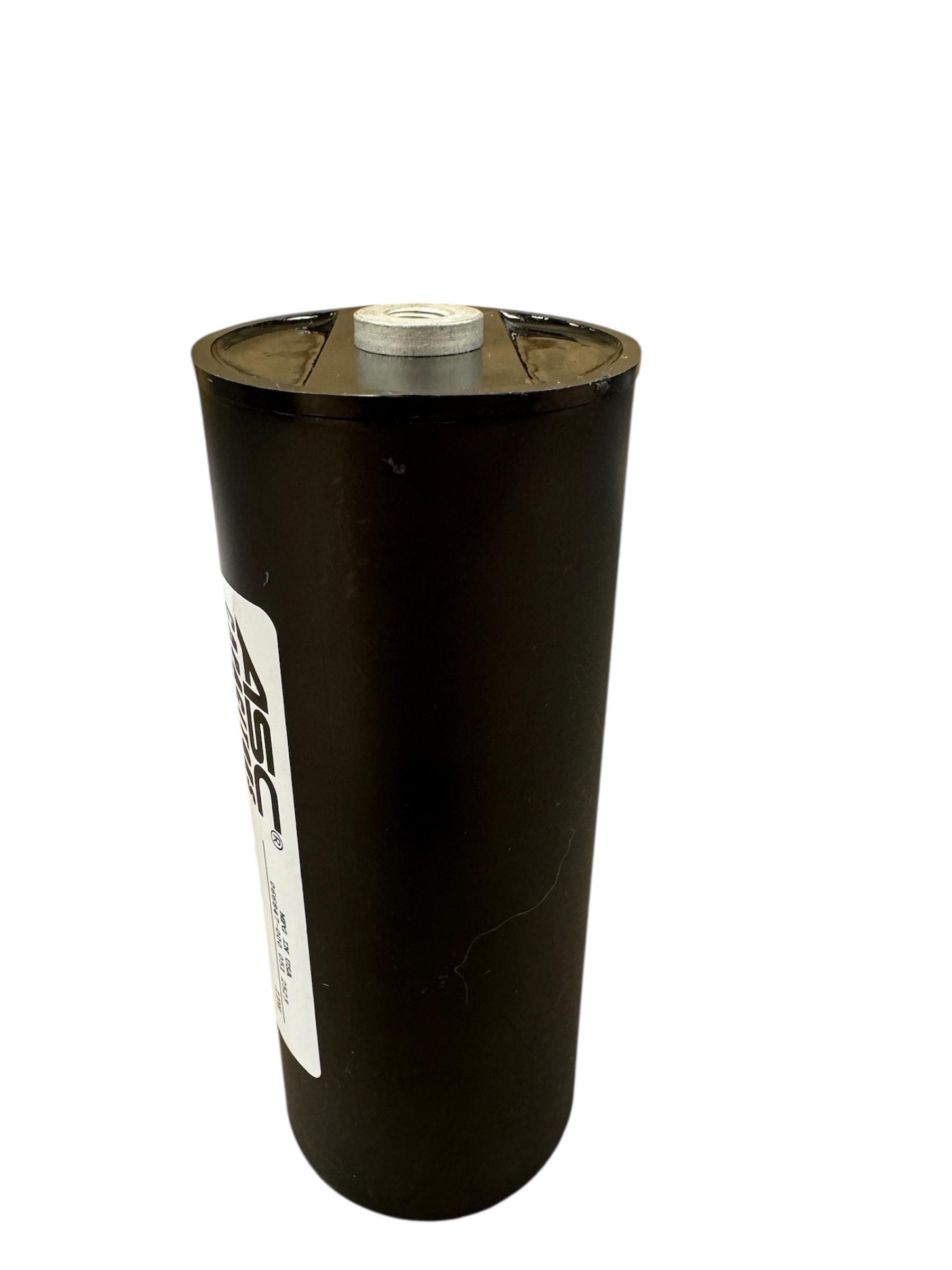

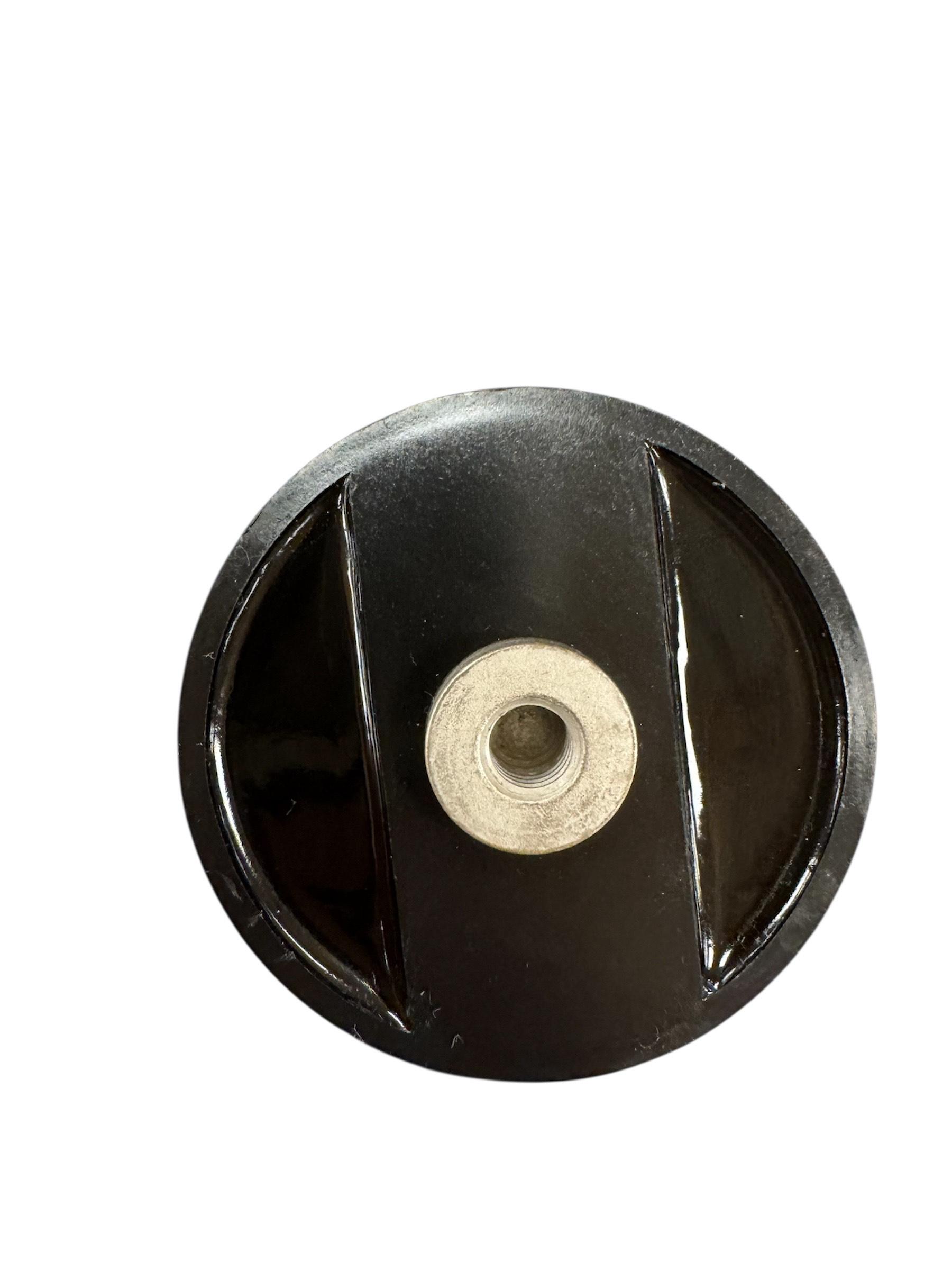

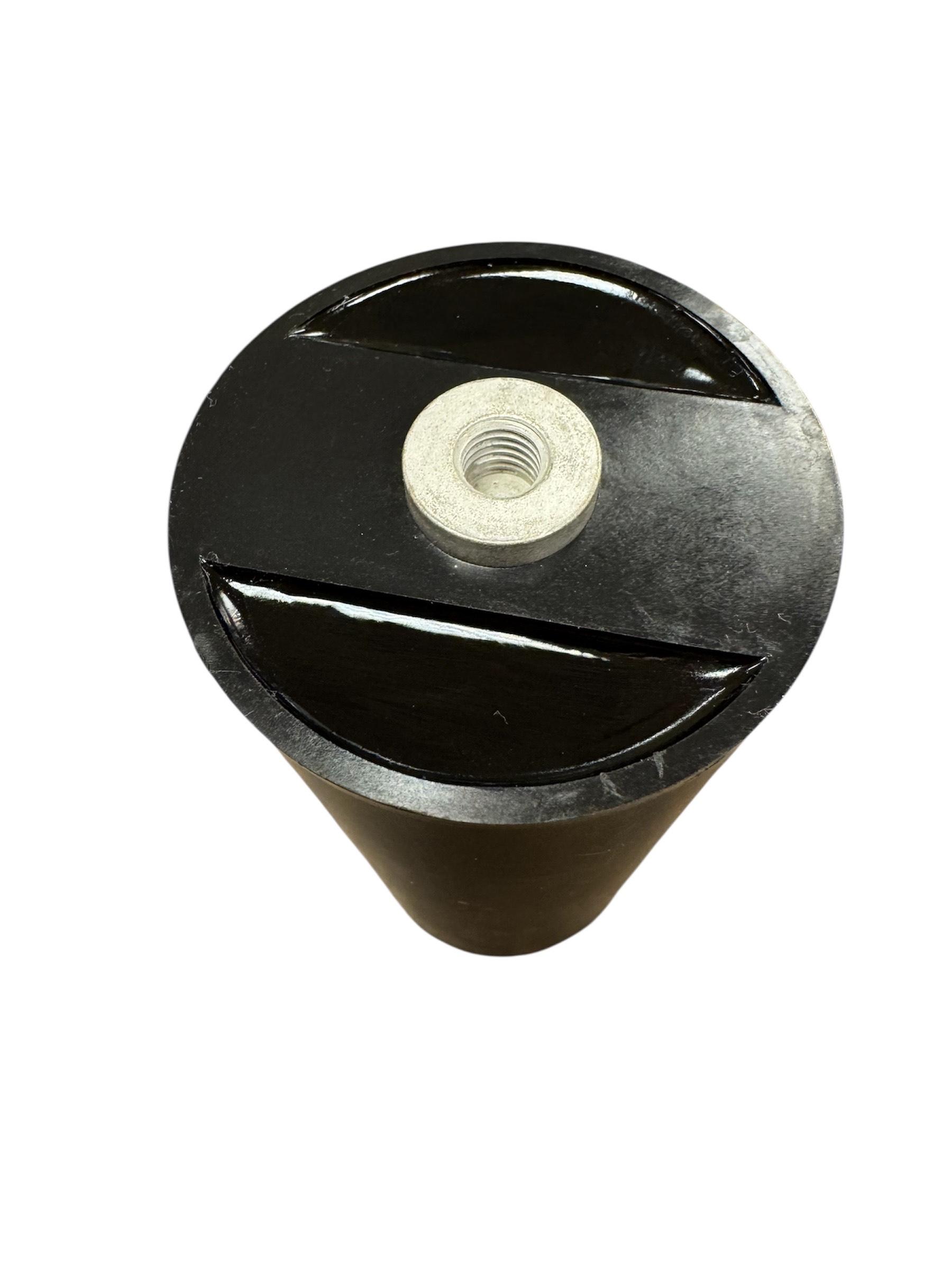

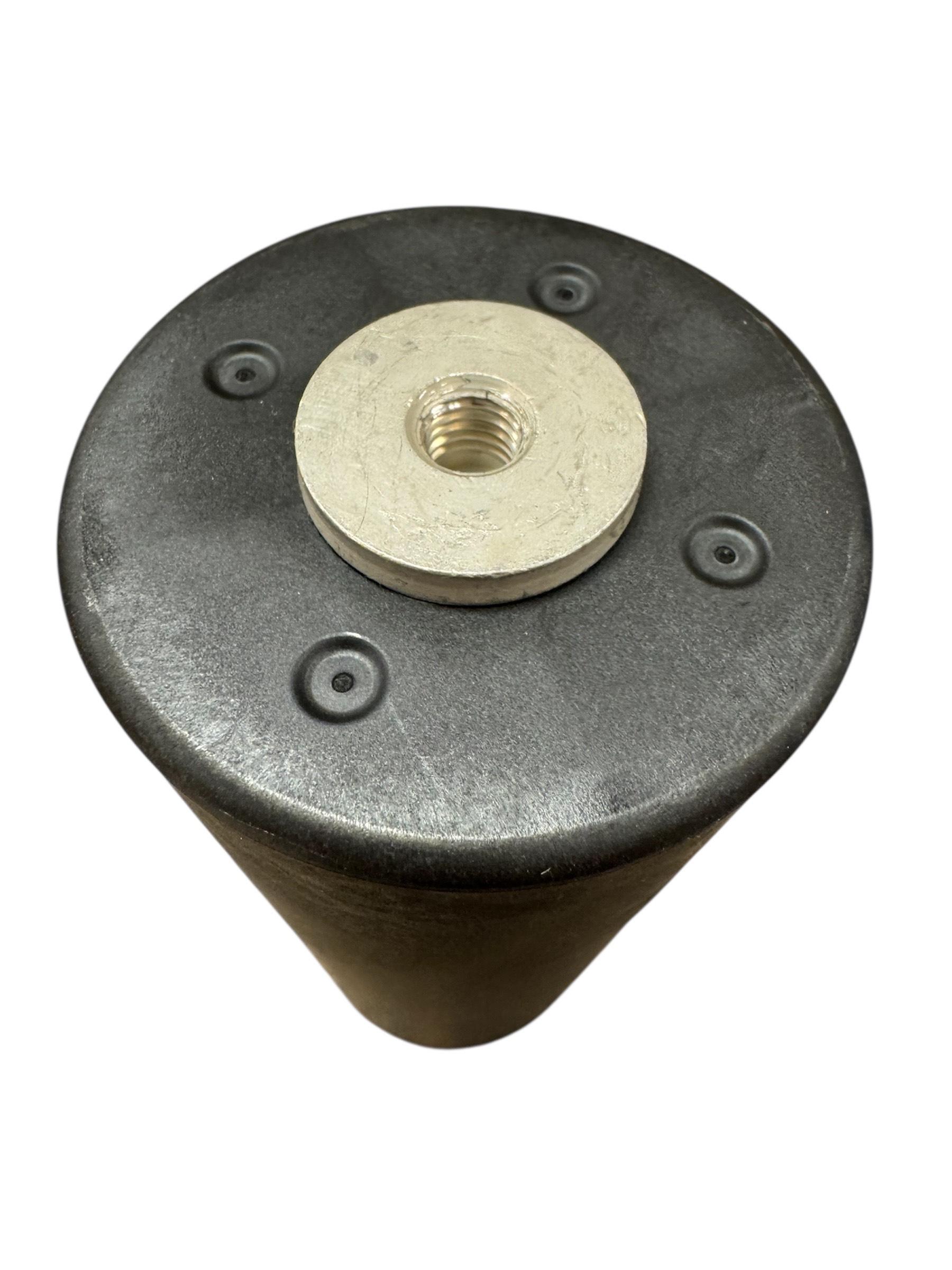

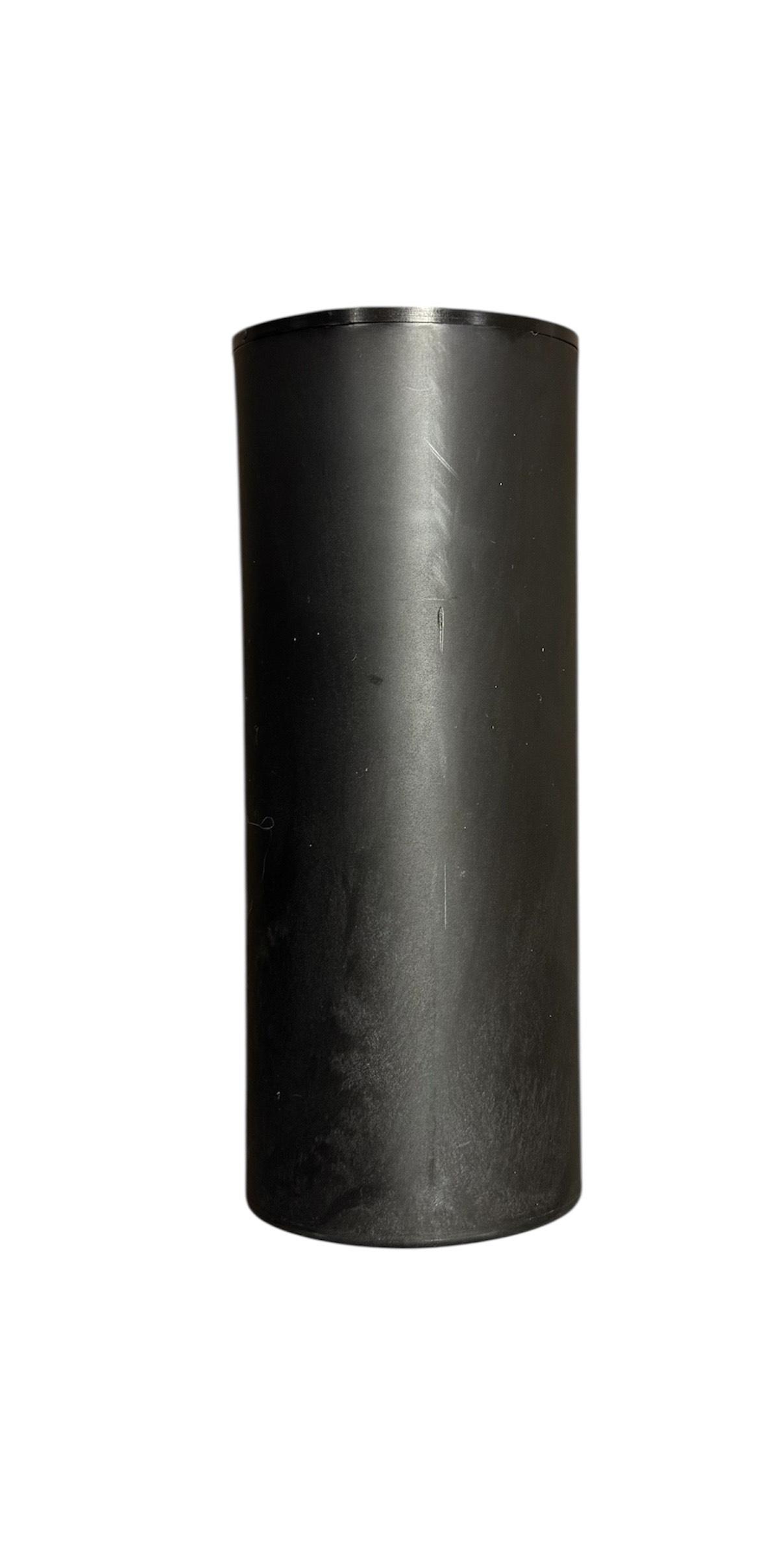

Explore our HVSC series film capacitor,  offering a capacitance of 0.2µF with a ±5% tolerance and a voltage rating of 3750VDC; it is constructed with metallized polypropylene film for high performance and longevity, boasting a lifecycle of 100,000 hrs.

The HVSC Series Snubber Capacitor is engineered for GTO & IGCT snubber circuits in low-to-medium voltage systems, including traction inverters, industrial inverters, adjustable-speed/variable-frequency drives, and rail grid interties. Utilizing hybrid technology, this capacitor provides high peak and RMS current capability, ensuring transient protection, EMI reduction, and enhanced system reliability. With self-healing properties, it safeguards power electronic devices from voltage spikes and performance degradation.

Key Features:

  • Hybrid Technology – Enhances efficiency and performance in high-power applications.
  • Self-Healing Property – Extends capacitor lifespan by preventing dielectric breakdown failures.
  • High Peak & RMS Current Capability – Handles high transient loads effectively.
  • Electromagnetic Interference (EMI) Reduction – Improves signal integrity and system stability.
  • Voltage Spike Protection – Ensures reliable operation of switching devices.

Applications:

  • GTO & IGCT Snubbers for Low-to-Medium Voltage Systems – Protects semiconductor components from overvoltage stress.
  • Traction Inverters – Supports stable performance in rail and transportation applications.
  • Industrial Inverters – Enhances reliability in motor control and energy conversion.
  • Adjustable-Speed/Variable-Frequency Drives (VFDs) – Reduces transient effects and maintains efficiency.
  • Rail Grid Interties – Improves power stability in railway electrical systems.

The HVSC Series Snubber Capacitor is the ultimate choice for engineers designing high-power inverter systems, traction applications, and industrial drives, offering superior transient protection, EMI suppression, and long-term reliability.”
