IFP
Capacitance Range:
32 - 4500 µF
Voltage Range:
400-3000VDC
Construction:
Cylinder
Male or Female Terms.
Application:
D/C Filter
(DL Link)

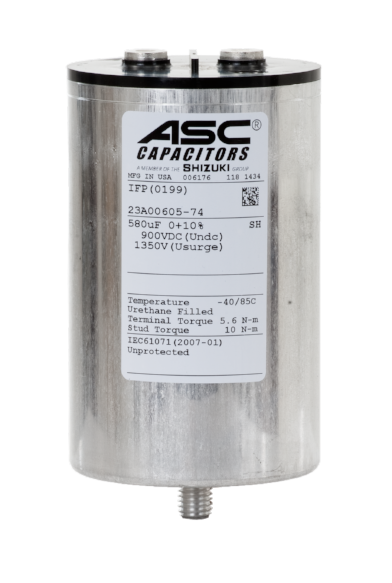

ASC™ IFP (Inverter Filter Power) capacitors are designed with modular DC link mounting in mind. Their cylindrical shape and terminal spacing originated as a drop-in replacement for electrolytics. Typically, film capacitors can handle much higher currents and as a result, bulk capacitance can be reduced.
Other Values
| CAP | Voltage | IRMS | IPEAK | ISURGE | RTH C-E | ESR(5kHz) | Diameter | Height | Pieces/Box | Data Sheet |
|---|---|---|---|---|---|---|---|---|---|---|
| [µF] | [UNDC] | [ARMS] | [kA] | [kA] | [°C/W] | [mΩ] | "D" [mm] | "H" [mm] | ||
| 400 | 200 | 58 | 2.4 | 7.3 | 4.7 | 1 | 76 | 99 | 10 | |
| 300 | 400 | 40 | 1.5 | 4.5 | 4 | 3.2 | 116 | 70 | 5 | |
| 300 | 400 | 40 | 1.5 | 4.5 | 4 | 3.2 | 85 | 110 | 9 | |
| 285 | 500 | 45 | 0.8 | 2.1 | 5.1 | 1.3 | 76 | 89 | 10 | |
| 525 | 575 | 50 | 1.4 | 4.2 | 6.5 | 6.9 | 75 | 150 | 10 | |
| 815 | 575 | 70 | 1.85 | 5.57 | 3.5 | 1.8 | 75 | 150 | 10 | |
| 800 | 700 | 60 | 1.7 | 5 | 2.2 | 4 | 85 | 225 | 9 | |
| 1200 | 800 | 92 | 5.1 | 15.5 | 1.6 | 1.6 | 116 | 146 | 5 | |
| 440 | 900 | 65 | 3.4 | 10.3 | 3.3 | 1.2 | 116 | 70 | 5 | |
| 1200 | 900 | 75 | 3.4 | 10.3 | 2.6 | 2 | 116 | 165 | 5 | |
| 1500 | 900 | 60 | 3.4 | 10.3 | 2.6 | 2.6 | 116 | 182 | 5 | |
| 2000 | 900 | 60 | 4.2 | 12.8 | 2.6 | 2.1 | 116 | 182 | 5 | |
| 2200 | 900 | 75 | 7.3 | 21.8 | 1.3 | 1.4 | 116 | 249 | 5 | |
| 950 | 1100 | 75 | 2.5 | 8.5 | 1.84 | 2.2 | 116 | 173 | 5 | Data Sheet |
| 500 | 1150 | 30 | 2.2 | 3.3 | 5.1 | 4.5 | 89 | 175 | 9 | |
| 150 | 2000 | 100 | 4.04 | 12.1 | 2.67 | 3.8 | 136 | 268 | 4 | |
| 54 | 3000 | 28 | 0.9 | 2.9 | 2.67 | 17 | 85 | 175 | 9 | |
| 60 | 3000 | 28 | 1.02 | 3.06 | 2.67 | 3.1 | 85 | 175 | 9 |
